Part 7: On Click Event

Table of contents

1. The On Click Event
   1. What is an Event Listener?
2. Changing the Armor Sprite when Clicked
3. Testing the Button
4. Challenge: Finish Armor Menu
5. What’s Next?

The On Click Event

Unity’s UI system uses an event system to allow your programs to react to user input. Each button component comes with an On Click event that can be accessed in the inspector.

1. Click on a button in your Hierarchy
2. Find the Button component in the Inspector (you may have to scroll down)
3. Find the On Click event
4. Click the + icon to add an Event Listener to the event

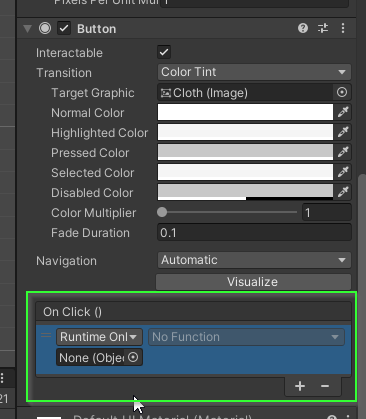

If all went well, you have a new Event Listener in your On Click event.

What is an Event Listener?

In Unity, an event listener is a function or method that “listens” for a specific event to occur and then executes a block of code in response to that event. Events can be emitted by various types of game objects, components, or scripts, and the event listener acts as a subscriber to these events. For example, you might have a button in your game that, when clicked, fires an event to which other parts of your code are listening. When the button is clicked, the event listener catches this event and executes predefined actions, such as loading a new scene or updating a game score. This decouples the components of your application, making your code modular and easier to manage.

Changing the Armor Sprite when Clicked

By default, the new Event Listener does nothing when the button is clicked. To make it do something interesting, you must attach it to a GameObject in your scene. In this case, you want to modify the sprite on the Armor GameObject.

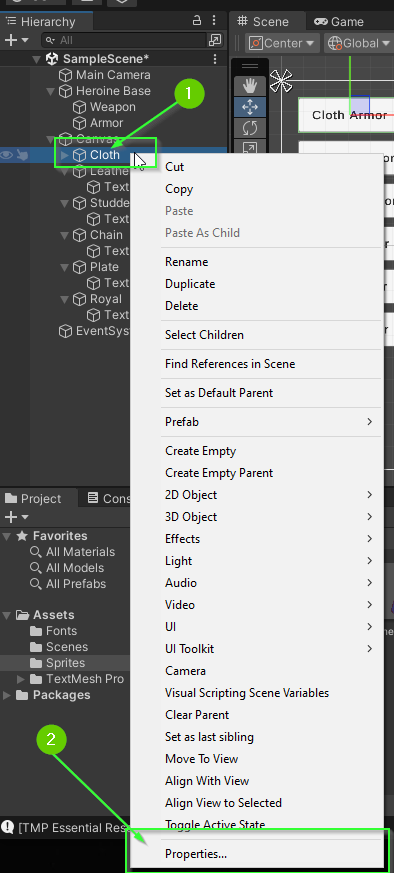

1. In the Hierarchy right click on the Cloth armor button.
2. Select Properties this will open a window that is inspecting that GameObject

Note: This is useful when you have to inspect more than one element at the same time. It works on most GameObjects and Assets in a Unity project.

1. Select the Armor GameObject from the Hierarchy
2. Drag the Armor GameObject into the GameObject position on the Event Listener you made previously.

With the Armor object registered on the Event Listener you can now specify how to modify that GameObject when the button is clicked.

1. Click the No Function drop down
2. Select the SpriteRenderer from the menu
3. Select the Sprite sprite from the menu

Lastly, you must specify the new value for the Sprite.

1. Find the heroine sprite sheet in your assets
2. Expand the sprite sheet
3. Click an drag the cloth armor sprite into the empty sprite property in your Event Listener

Testing the Button

Test the game:

1. Click the Play icon in the top of the Unity Editor.
2. Wait a moment for Unity Play Mode to launch
3. Click the Cloth Armor button

Note: If all went well, your characters armor will change when you click the button.

1. Click the Play button again to exit Play Mode

Warning: Do not forget to exit Play Mode. If you make edits in play mode, the changes will not be saved.

Challenge: Finish Armor Menu

Update each of your buttons to change the Armor sprite to the appropriate armor selection.

When you’re done, your program should function similar to the one in the preview below:

What’s Next?

In Part 8: Vertical Layout Group, you will learn how to utilize Unity’s Layout tools to help you manage the complexity of your user interfaces.
